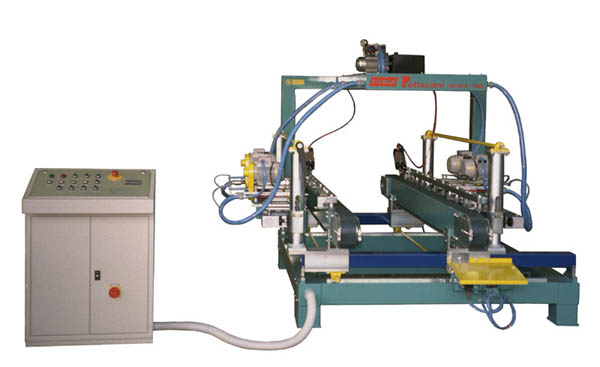

Drilling machine FG4NA

The drilling machine FG4NA is designed to make holes for anchoring on the edges of marble, granite or stone slabs and consists of:

1 supporting structure made of welded steelwork.
2 conveyor belts for moving the slabs with side guides which can be automatically adjusted to suit the different widths of the slabs.
2 chrome plated steel bridges with protection covers carrying the sledges in cast iron with the drilling heads. The bridge sits on two columns and moves vertically to adjust for different drilling location in the vertical direction.

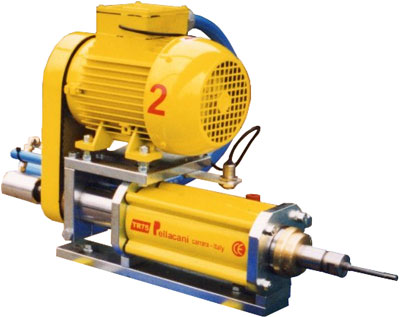

4 drilling heads with hydraulic operated movements for adjustments in the vertical or horizontal planes.
1 hydraulic station to move the drilling heads.
An operator's workstation in which are addressed the electric board and the controls panel. On the controls panel are arranged the selectors for the drills, the luminous indicators of the working cycle, the digital indicator for the positioning of the conveyor belts and the red switch for the emergency block of the machine.

The slabs carried by conveyor belts are stopped in the correct places by means of two end switches which also align the slab with tee drilling heads. The two switches disappear automatically after each drilling operation is completed and the slab moves forward. All four drills can operate simultaneously or only, one or two at the same time.

Click the images to zoom

Machine length:

3200 mm

Machine width:

1900 mm

Machine height:

2200 mm

Weight:

1800 kg

Holes diameter:

Min 5 mm - Max 14 mm

Depth of holes:

Up to 75 mm

Interaxis:

Min 110 mm - Max 1500 mm

Slabs width:

Min 250 mm - Max 1300 mm

Maximum slab thickness:

100 mm

Maximum electric power absorption:

7,75 Hp - 5,7 Kw

Drill:

1,5 Hp - 1,1 Kw (4 motori)

Hydraulic pump:

0,5 Hp - 0,37 Kw

Conveyor belts:

0,5 Hp - 0,37 Kw (2 motori)

Positioning of the conveyor belts:

0,25 Hp - 0,18 Kw

The information contained in this specification may be subjected to change.
