Officina Meccanica Pellacani Giuseppe & C. snc
Special machines for marble, granite and stone processing.
Our production
These are the machines that we produce
Furthermore our company can customize the machines according to specific customer needs in order to suit specific work processes or problems of space.
On request can also be prepared personalized machines or examined solutions for proposed problems.
Other areas of work

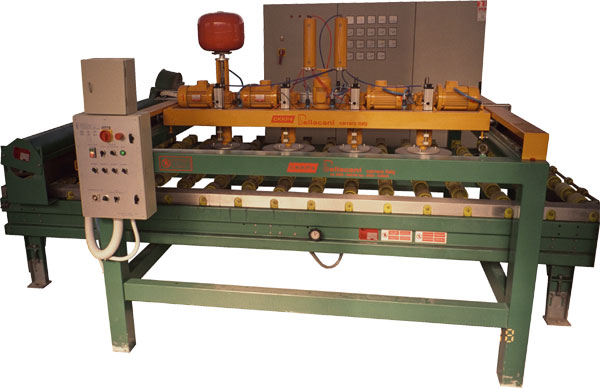

Polishing machine CKKP4
Click the image to zoom.
- Specification
Machine length:
2800 mm
Machine width:
2800 mm
Machine height:
2200 mm
Weight:
800 kg
- Electric motors power
Max. power absorbed:
8,5 Hp - 6,37 Kw
Brushes motors:
2 Hp - 1,5 Kw (4 motori)
Brushes moving motor:
0,5 Hp - 0,37 Kw
Supply:
Tri-phase + n + earth
- Voltage
Motors:
V 400 - Hz 50
Controls:
V 24/50
- Possible production
Max. length of the slab:
3000 mm
Max. width of the slab:
2200 mm
Max. thickness:
70 mm
The information contained in this specification may be subjected to change.
